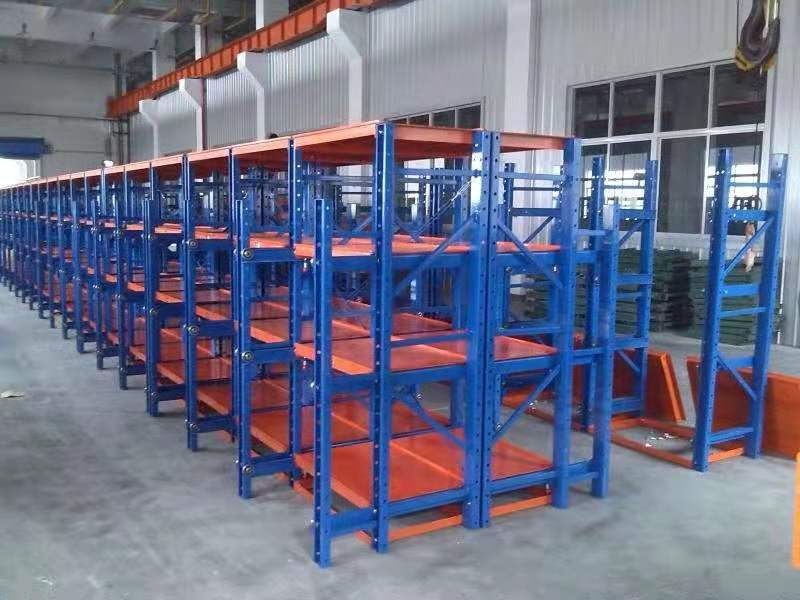

China Making Economical Mould Rack Type Steel Drawer Mold Racking Panel Aluminium Storage Rack Pallet Racking
| Product Name |
Metal rack for moulds |
| Item No. |
GMR-2.0 |
| Material |
Steel |
| Finish |
Powder coated |
| Color |
Customized (Regular colors are green, white, orange, blue and matt grey) |
| Description |
- Upright (single sided): 2000*600*60mm x 2pcs
- Upright (double sided): 2000*600*65mm x 2pcs
- Bottom frame: 900*600*50mm x 3pcs
- Drawer layer: 900*600*75mm x 12pcs
- Top layer with metal fence: 980*600*200 x 3pcs
Material Specifications:
- Upright: 100*50*2.0C steel
- Layer: 2.0mm
- Track on upright: 3.5mm
- Slide groove on drawer layer: 3.5mm
Other Accessories:
8 screws (4 for fixing bottom frame and the other 4 for fixing top layer) for a main rack + 4 locating pins for a main rack + 2 back wires for 3 racks
|
| Features |
- The top layer with metal fence cannot be drawn out, it is fixed by screws on top.
- The metal fence of the top layer can be nondetachable (welded) or detachable, both options are available.
- Every drawer layer features a 12mm upward bending on both sides to prevent moulds from falling, designed with a decorative pattern for anti-skidding.

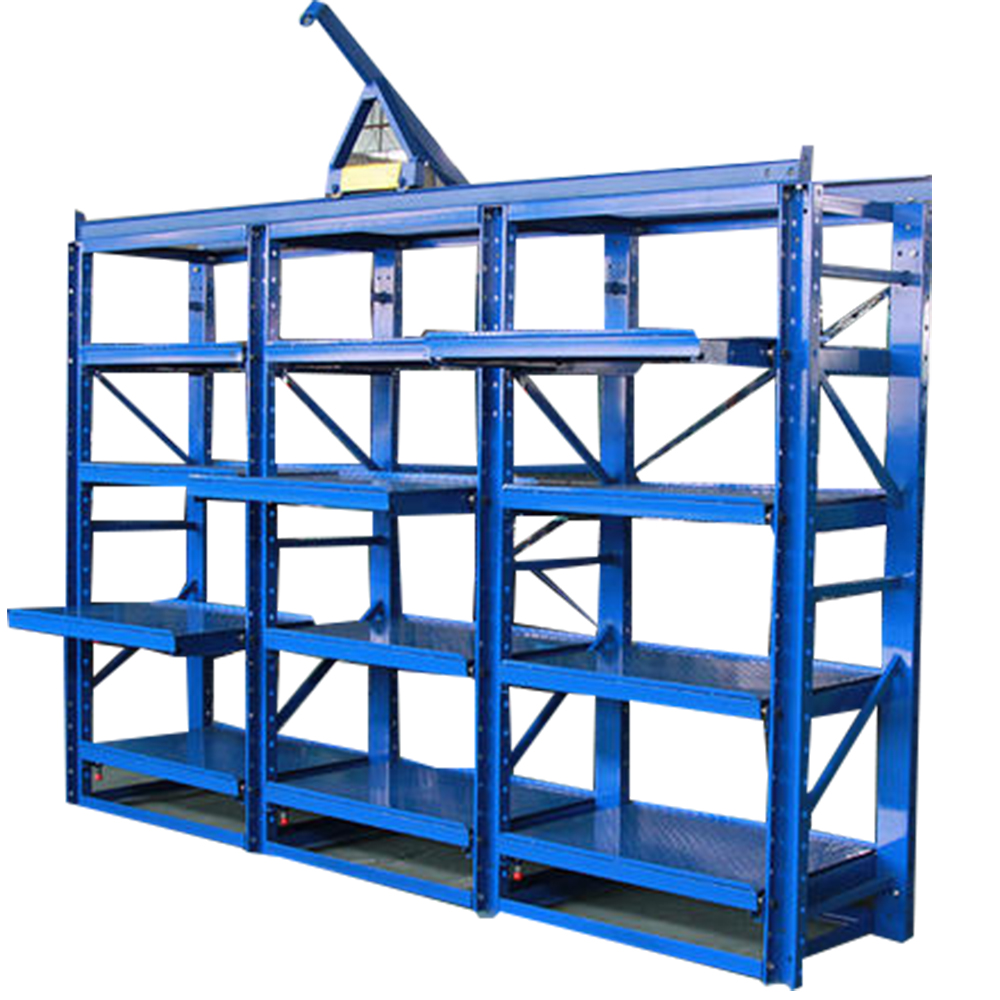

- The drawer layers can be half-drawn out.
|
| Size (L*W*H) |
L3100*W600*H2000 (1 main rack + 2 attached racks per 1 set) |
| Load Capacity |
800kg/layer, total 5 layers per rack |
| Application |

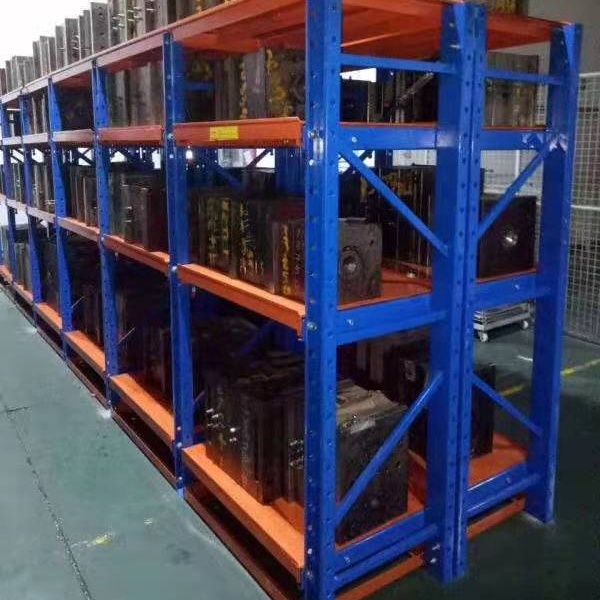

Storage rack for moulds in warehouse |
| Packing |
Bubble film for each upright, drawer, top layer and bottom frame. Other accessories are packed in a box or customized. |
| MOQ |
10 sets |
| Payment Terms |
Payment <= 3000USD, 100% in advance. Payment > 3000USD, 30% T/T in advance, balance before shipment. |
| Free Sample |
For sample orders, sample and freight fees will be charged. However, the sample fee will be refunded to you upon receiving your first formal order. |
| Delivery Time |
20 days |
| Remarks |
Accepted ODM or OEM |
OUR HIGH GRADE SHELVING WITH GOOD WEIGHT CAPACITY ALSO WELL BEARS YOUR TRUST!
We are a professional manufacturer focused on warehouse & supermarket storage racks. We have 20 years of R&D experience, over 10,000 square meters of factory area, and more than 150 skillful staff members. We have introduced 4 automatic and 12 half-automatic production lines of welding, 10 rolling lines, and 2 powder coating lines.
Frequently Asked Questions
QAre you a factory or a trading company?
AWe are a shelf manufacturing factory.
QWhat is your payment term and delivery time?
APayment <= 3000USD, 100% in advance. Payment > 3000USD, 30% T/T in advance, balance before shipment. Irrevocable L/C at sight, EXW price, and cash are also acceptable. The delivery time is 15 days after the order is confirmed. Please check with our sales team for the exact date.
QHow are the goods packed?
ABubble film for Uprights and Beams, cartons for Plates, or any other packaging upon customer's request.
QWhat is your average production delivery time?
AAround 15 days against formal order and deposit.
QI am not sure about your product. Can you send a sample for reference?
AFor sample orders, the sample and freight fee will be charged. However, the sample fee will be refunded to you upon receiving your first formal order.
QI would like to have my own design products and the quantity is not that big, is it ok?
AYes, we can go with your customized design, regardless of small or big quantities. However, please understand that the cost will be different.
